Latest revision as of 22:27, 10 November 2025
Italian engine for aircraft use

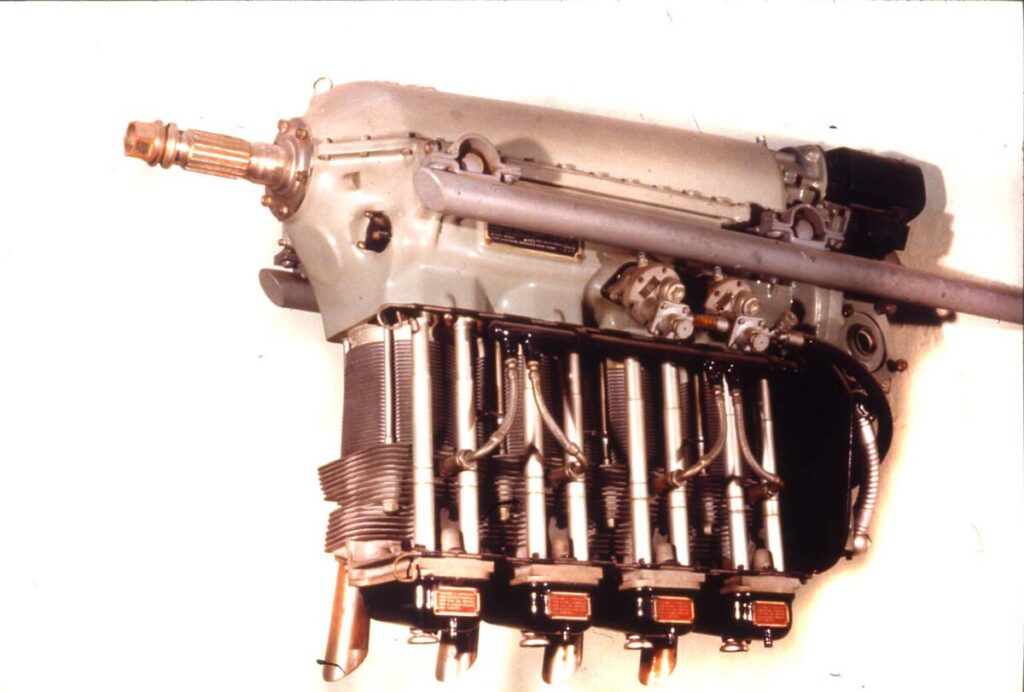

The Alfa Romeo 110 was an Italian four cylinder air-cooled inverted inline engine for aircraft use, mainly for trainers and light aircraft. The Alfa Romeo 110 was based on the de Havilland Gipsy Major, with approximately 500 units produced. Derivatives of the 110 include the -1, ter and Alfa Romeo 111[1] (possibly a mis identification of the 110-1).
- Alfa 110-1
- 97Â kW (130Â hp) at 2,350 rpm
- Alfa 110ter
- 108Â kW (145Â hp) at 2,350 rpm
- Alfa 111
- 116Â kW (155Â hp)[1]
Specifications (110-1)
[edit]
Data from Jane’s All The World’s Aircraft 1938,[2]
Italian Civil and Military aircraft 1930–1945,[1]
and Aircraft Engines of the World 1945 [3]
General characteristics
- Type: Four-cylinder inverted air-cooled inline engine
- Bore: 118Â mm (4.65Â in)
- Stroke: 140Â mm (5.51Â in)
- Displacement: 6.125 L (373.8 cu in)
- Length: 1,642Â mm (64.6Â in)
- Width: 498Â mm (19.6Â in)
- Height: 825Â mm (32.5Â in)
- Dry weight: 136Â kg (300Â lb)
- Frontal Area: 6.1 sq ft (0.6 m2)
Components
- Valvetrain: Two valves per cylinder, operated by pushrods and rocker arms
- Oil system: Dry sump with one pressure and three scavenge pumps, 276–310 kPa (40–45 psi)
- Oil consumption: 0.01095 kg/(kW h) (0.018 lb/(hp h))
- Cooling system: Air-cooled
- Starter: Eclipse inertia starter
- Ignition: 2 x Marelli SA-4 magnetos
Performance
Comparable engines
Related lists
